Battery Chemistry: LiFePO4
Capacity Options: 100Ah / 200Ah
Energy Options: 5kWh / 10kWh / 14kWh
Nominal Voltage: 51.2V (Operating 48V)
Cycle Life: ≥6500 cycles @ 80% DoD

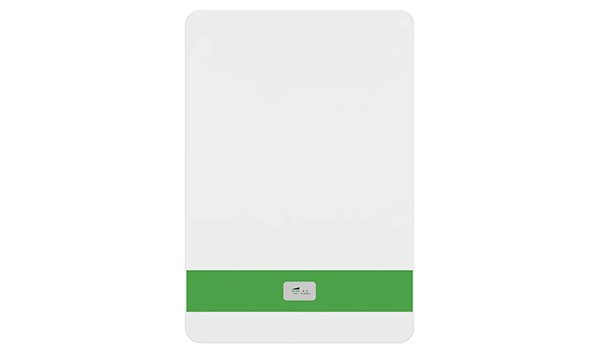

The Power Wall Storage Battery System is designed to provide safe, reliable and efficient home or commercial energy storage. Built with advanced LiFePO4 technology, it ensures long cycle life, excellent thermal stability and high safety standards.
With flexible capacity options of 5kWh, 10kWh, and 14kWh, this system is ideal for backup power, renewable energy storage, and reducing reliance on the grid.
| Category | 5kWh Model | 10kWh Model | 14kWh Model |
|---|---|---|---|
| Battery Chemistry | LiFePO4 | ||
| Capacity (Ah) | 100Ah | 200Ah | 280Ah |
| Nominal Voltage (V) | 51.2V | ||
| Operating Voltage | 48V | ||
| Energy (kWh) | 5kWh | 10kWh | 14kWh |
| Cycle Life | ≥6500 cycles | ||
| Recommended DoD | 80% | ||
| Installation | Wall Mounted | ||
| Communication | CAN2.0, RS485 | ||
| Warranty | 10 Years | ||
Advanced BMS ensures safety and optimized performance.
Available in 5kWh, 10kWh and 14kWh to suit different energy needs.
Over 6500 cycles with 80% DoD for years of reliable use.
Non-toxic, safe, and environmentally sustainable technology.
Find the answers here or contact us to discuss your project.
It delivers over 6500 cycles at 80% DoD, translating to 10+ years of usage.
Yes, it is designed as a compact wall-mounted storage system.
It works with most hybrid inverters available on the market.
Yes, LiFePO4 chemistry ensures high safety, thermal stability and non-toxicity.
Yes, multiple units can be connected in parallel for higher capacity.
It includes a 10-year manufacturer warranty.
